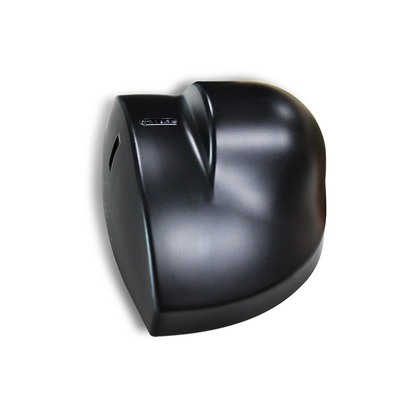

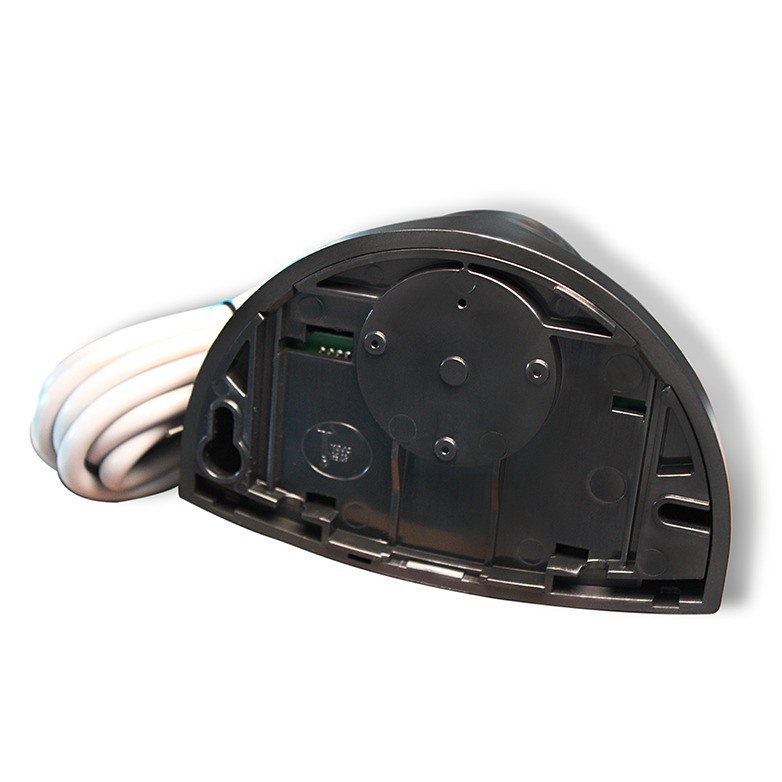

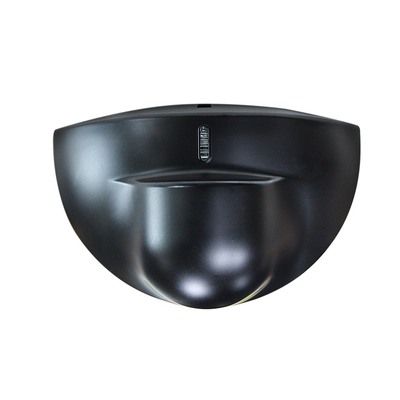

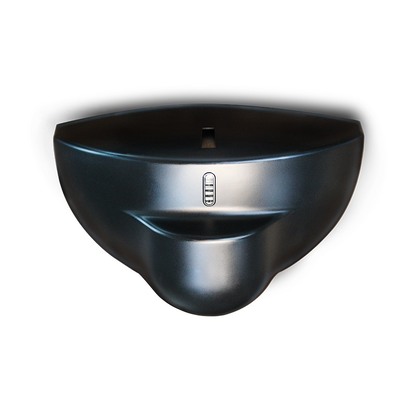

Glass Door Sensor | 24.125GHz | Adjustable Sensitivity | Low Power Consumption

ब्रांड नाम:	JUTAI
मॉडल संख्या:	आरडी24-4
एमओक्यू:	100
कीमत:	4-6 USD according to order quantity
पैकेजिंग विवरण:	दफ़्ती
भुगतान की शर्तें:	टी/टी, पेपैल, अलीपे, वेस्टर्न यूनियन

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

शेनझेन, चीन

प्रमाणन:

तकनीकी:

माइक्रोवेव डॉपलर रडार

ट्रांसमीटर आवृत्ति:

24.125GHz

ट्रांसमीटर विकिरणित शक्ति:

<20 डीबीएम ईआईआरपी

ट्रांसमीटर पावर घनत्व:

≤5mW/सेमी

अधिकतम स्थापना ऊंचाई:

झुकाव कोण:

0°~90° लंबवत; -30°~+30° पार्श्व

डिटेक्शन फील्ड (2.2 मीटर माउंटिंग):

4m(W)×2m(D)

डिटेक्शन मोड:

गति का पता लगाना

न्यूनतम पता लगाने योग्य गति:

5 सेमी/सेकेंड (सेंसर अक्ष)

वोल्टेज आपूर्ति:

12-24V एसी ±10%; 12-24वी डीसी +30%/-10%

मुख्य आवृत्ति:

50-60 हर्ट्ज

बिजली की खपत:

≤2W(VA)

आउटपुट मोड:

ट्यूब आउटपुट स्विच करें

सिग्नल आउटपुट समय:

1.5s होल्ड

अधिकतम संपर्क वोल्टेज:

42V एसी/डीसी

अधिकतम संपर्क वर्तमान:

1ए (प्रतिरोधक)

अधिकतम स्विचिंग पावर:

30W(DC) / 60VA(AC)

कार्य तापमान रेंज:

-20 ℃ ~ +55 ℃

सुरक्षा की डिग्री:

आईपी54

सामान्य अनुरूपता:

आर एंड टीटीई 1999/5/ईसी; ईएमसी 89/336/ईईसी

सामग्री:

3000 पीसी/माह

आवास का रंग:

काली चांदी

आयाम (डब्ल्यू×एच×डी):

120मिमी×80मिमी×50मिमी

शुद्ध वजन:

0.215 किग्रा

केबल लंबाई:

2.2मी

आपूर्ति की क्षमता:

प्रति माह 5000 पीसी

प्रमुखता देना:

microwave motion sensor glass door

24.125GHz motion sensor adjustable sensitivity

low power consumption microwave sensor

उत्पाद का वर्णन

Glass Door Sensor | 24.125GHz | Adjustable Sensitivity | Low Power Consumption

This 24.125GHz Glass Door Sensor is a specialized motion detection solution optimized for all glass door systems, featuring fully adjustable sensitivity and ultra-low power consumption for efficient, customizable performance in commercial storefronts, office lobbies and modern residential entryways. Tuned to the reliable 24.125GHz microwave Doppler frequency band, it’s precision-calibrated to avoid false triggers from glass reflections and ambient light—common pain points for glass door sensing—while delivering accurate detection of human motion at ≥5cm/s, perfect for single, double and frameless glass door setups. The adjustable sensitivity potentiometer allows gentle, precise tuning of the detection range: narrow the sensing field for compact entryways to prevent over-sensing adjacent walkways, or boost it for high-traffic commercial glass doors to ensure full coverage, with intuitive calibration that requires no professional tools.

A standout feature is its ultra-low power consumption, operating at ≤2W to minimize energy use during 24/7 continuous operation, and it supports a flexible 12-24V AC/DC wide voltage supply, seamlessly integrating with existing glass door control power setups without the need for additional adapters. Constructed with a sleek ABS housing, the sensor mounts discreetly on glass door frames or surrounding walls, preserving the modern, minimalist aesthetic of glass door installations, and its IP54 dustproof and waterproof rating shields internal components from daily splashes and dust accumulation in high-footfall areas. It performs stably in a wide temperature range of -20℃ to +55℃, with a clear LED status indicator for easy power and detection feedback, and complies with R&TTE and EMC international standards for interference-free operation near electronic devices. Blending glass door-specific calibration, adjustable sensitivity and energy-efficient low power use, this sensor is a hassle-free, cost-effective motion detection choice for all glass door access control needs.

Glass Door Sensor | 24.125GHz | Adjustable Sensitivity | Low Power Consumption 0

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)*2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)*2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (WHD)	120mm80mm50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment. Simple operation with no professional tools required:

Mounting Requirements

Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.

Sensitivity Adjustment

Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).

Angle Adjustment

Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.

Status Check

LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)

Core Technologies

Microwave Doppler Radar Sensor 24.125GHz Radar Sensor Automatic Door Motion Detector Wide Field Detection Sensor IP54 Motion Sensor
